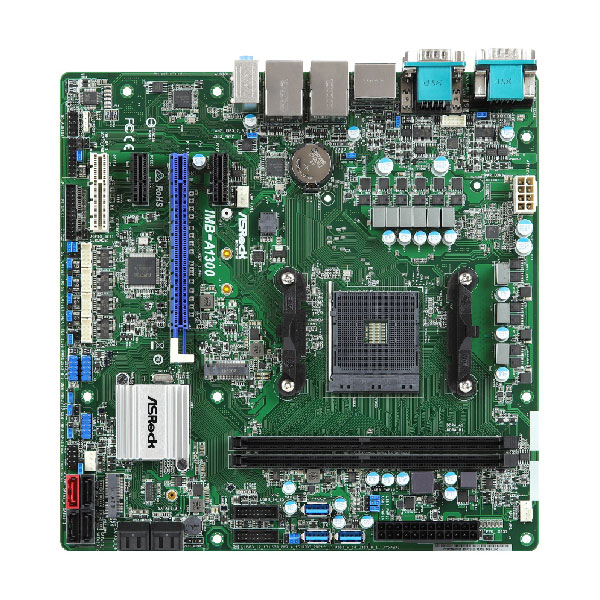

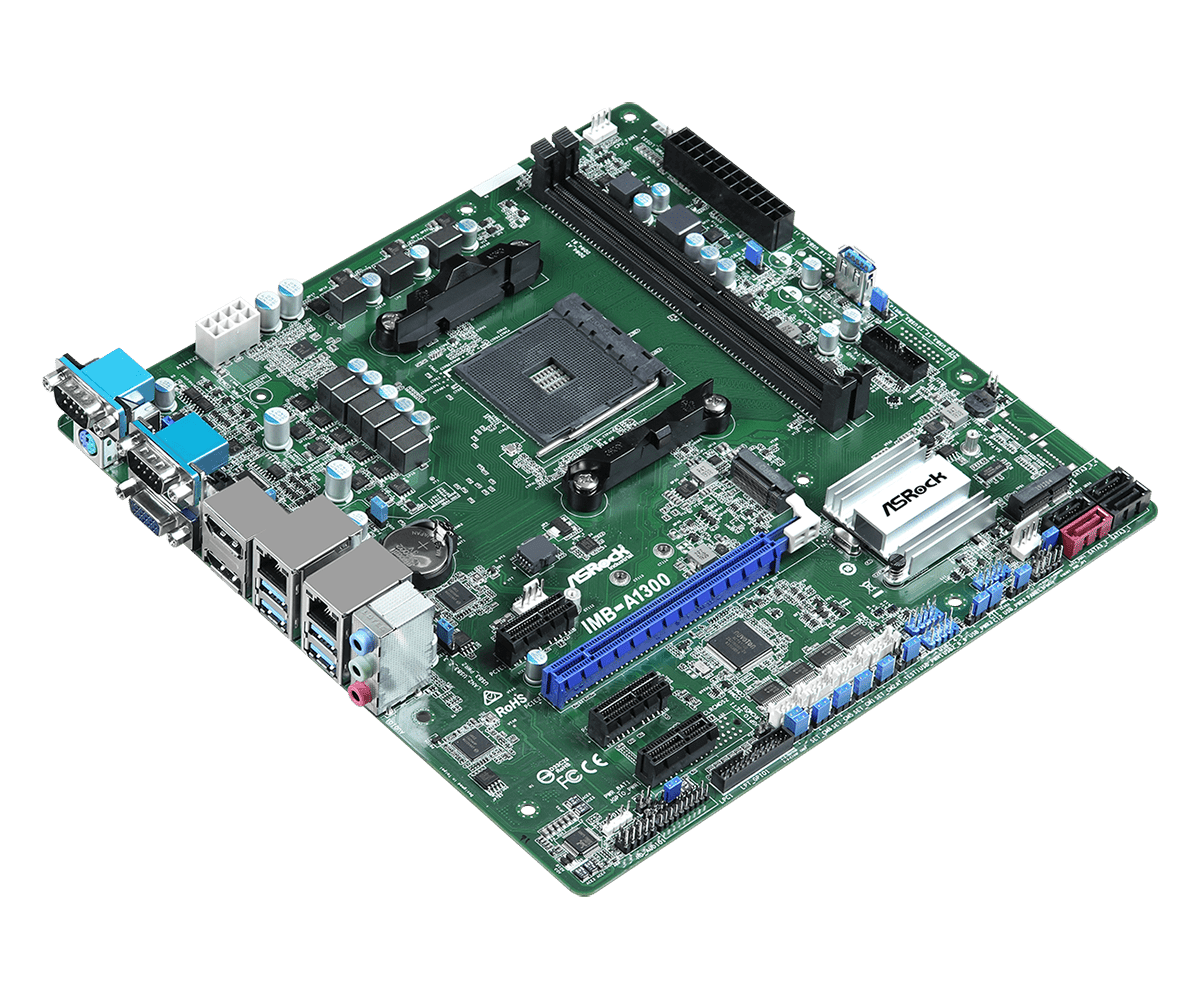

ASRock Industrial IMB-A1300 AMD Ryzen Micro-ATX Motherboard
• Asrock IMB-A1300 – IMB-A1300 AMD Ryzen Micro-ATX Motherboard
• Supports AMD AM4 Socket, with A-Series APU and Ryzen Series CPU
• Supports Dual Channel DDR4 Long-DIMM 3200 MHz, up to 32GB
• 2 x Displayport, 1 x VGA
• 4 x USB 3.1, 3x USB 3.0, 6 x USB 2.0, 4 x SATA3, 6 x COM
• 3 x PCIe x1 Slot ,1 x PCIe x16 Slot , 1 x M.2 KEY M, 1 x M.2 KEY E
• 2 x Intel LAN
• 1 x Onboard TPM 2.0 IC
• ATX PWR 24+8-pin
Description
Overview
- Supports AMD AM4 Socket, with A-Series APU and Ryzen Series CPU
- Supports Dual Channel DDR4 Long-DIMM 3200 MHz, up to 32GB
- 2 x Displayport, 1 x VGA
- 4 x USB 3.1, 3x USB 3.0, 6 x USB 2.0, 4 x SATA3, 6 x COM
- 3 x PCIe x1 Slot ,1 x PCIe x16 Slot , 1 x M.2 KEY M, 1 x M.2 KEY E
- 2 x Intel LAN
- 1 x Onboard TPM 2.0 IC
- ATX PWR 24+8-pin
Specification
| Form Factor |
| Dimensions |
| – Micro-ATX (9.6-in x 9.6-in) |
| Processor System |
| CPU |
| – AMD AM4 Socket with Ryzen Series CPU (2200G, QC,3.5GHz,65W ) (2400G, QC, 3.6GHz,65W) |
| Chipset |
| – AMD Promontory B450 |
| Expansion Slot |
| PCIe |
| – 1 x PCIe x16(only supports PCIe x8 mode by Ryzen (Raven Ridge) CPU), 3 x PCIe x1 |
| Mini-PCIe |
| – N/A |
| M.2 |
| – 1 x Key M(3042/3060/3080)with PCIe x4 and SATA3 for SSD |
| – 1 x Key E(2230)with PCIe x1 and USB 2.0 for Wireless |
| Memory |
| Technology |
| – Dual Channel DDR4 2933 MHz |
| Max. |
| – 32GB |
| Socket |
| – 2 x Long-DIMM |
| Graphics |
| Controller |
| – AMD Radeon™ Vega 8 Graphics(2200G), |
| – AMD Radeon™ Vega 11 Graphics(2400G) |
| VGA |
| – Max resolution up to 1920 x 1200@60Hz |
| DVI |
| – N/A |
| LVDS |
| – N/A |
| HDMI |
| – N/A |
| DisplayPort |
| – DisplayPort++ 1.2 with max resolution up to 4096×2160@60Hz |
| MultiDisplay |
| – Triple Display |
| eDP |
| – N/A |
| Ethernet |
| Ethernet |
| – 10/100/1000 Mbps |
| Controller |
| – 2 x Intel® I210-AT |
| Storage |
| SATA |
| – 4 x SATA3 (6.0 Gb/s, one is shared with M.2 Key M) |

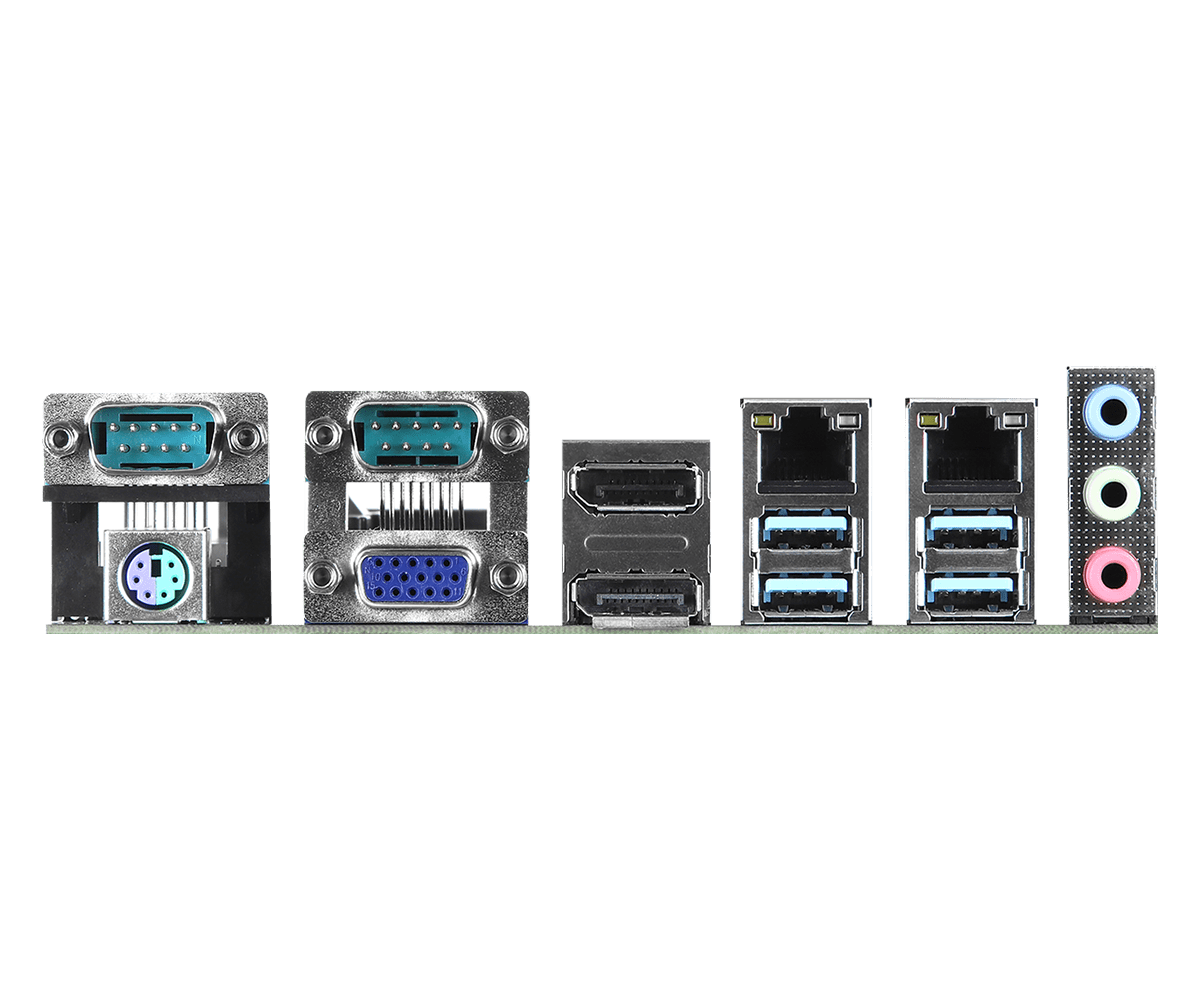

| Rear I/O |
| VGA |
| -1 |
| DVI |
| – N/A |
| HDMI |
| – N/A |
| DisplayPort |
| -2 |
| Ethernet |
| -2 |
| USB |
| – 4 x USB 3.1 |
| Audio |
| – 3 (Mic-in. Line-in. Line-out) |
| Serial |
| – 2 x COM (RS-232/422/485) |
| PS2 |
| – 1 x PS/2 Combo |
| Internal Connector |
| USB |
| – 6 x USB 2.0(3 x header), 3 x USB3.0 (1 x header, 1 x Type A) |
| LVDS / inverter |
| – N/A |
| eDP |
| – N/A |
| VGA |
| – N/A |
| Serial |
| – 4 x COM (RS232) |
| SATA |
| – 4 x SATA3 (6.0 Gb/s, one is shared with M.2 Key M) |
| Parallel |
| -1 |
| GPIO |
| – 8 x GPI, 8 x GPO |
| SATA PWR Output |
| – N/A |
| Speaker Header |
| -1 |
| TPM |
| – 1 x Onboard TPM 2.0 IC |
| Watchdog Timer |
| Output |
| – From Super I/O to drag RESETCON# |
| Interval |
| – 256 segments, 0,1,2…255sec/min |
| Power Requirements |
| Input PWR |
| – ATX PWR 24+8-pin |
| Power On |
| – AT/ATX Supported |
| – AT : Directly PWR on as Power input ready |
| – ATX: Press Button to PWR on after Power input ready |
| Environment |
| Operating Temp |
| – 0ºC – 60ºC |
| Storage Temp |
| – -40ºC – 85° C |
| Operating Humidity |
| – 5% ~ 90% |
| Storage Humidity |
| – 5% ~ 90% |
