Description

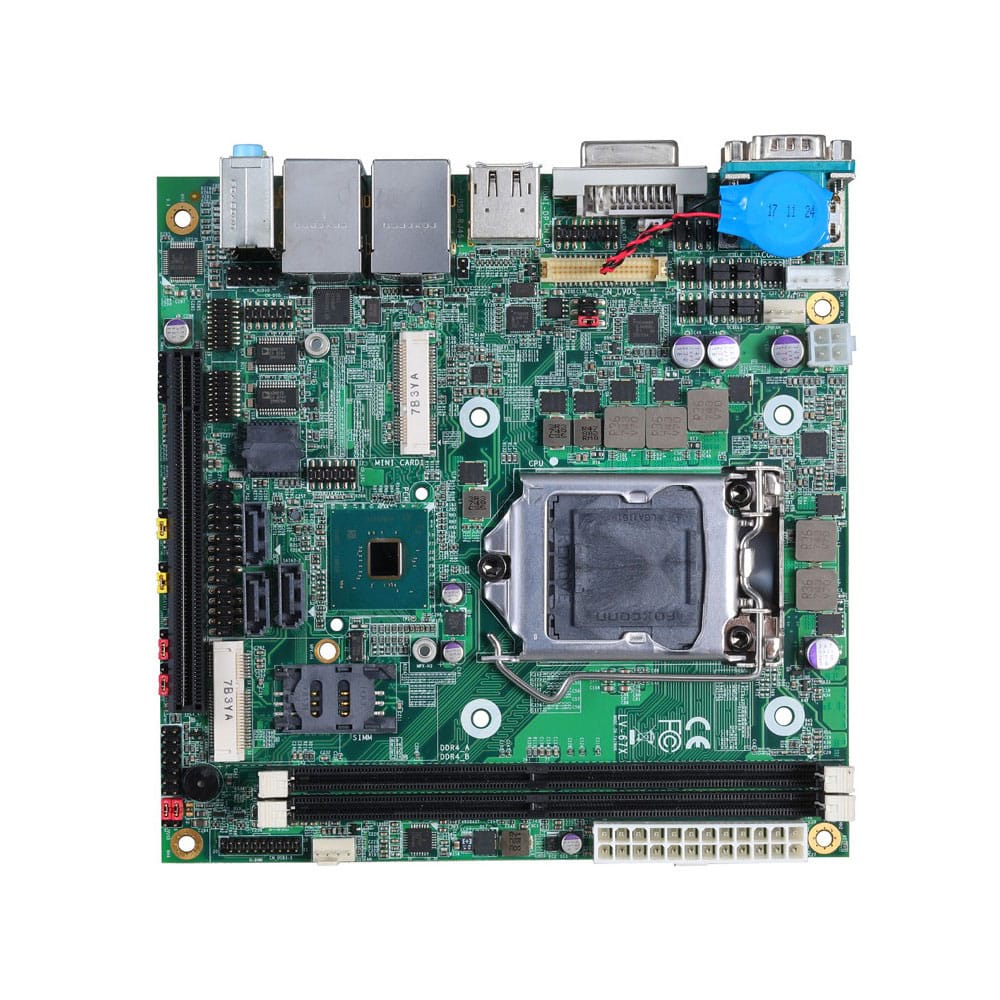

Commell’s LV-6717 is a powerful and compact Mini-ITX industrial motherboard designed to support 15th Gen Intel Arrow Lake-S Ultra processors with the FCLGA1851 socket. Engineered for high-performance computing, the LV-6717 integrates DDR5 memory support (up to 128GB) and a wide range of display outputs including HDMI 2.1 and DisplayPort 1.4a, making it ideal for advanced industrial applications such as automation, smart kiosks, and machine vision.
Built for connectivity and expandability, the LV-6717 offers dual 2.5G LAN ports for high-speed networking, six USB 3.2 Gen2 ports, and a rich combination of COM ports, GPIO, SMBus, and audio interfaces. Internal I/O includes 2 x SATA3, 2 x RS232, and multiple M.2 slots (2 x Key M, 1 x Key E), providing versatile support for storage, Wi-Fi, and AI accelerators. A PCIe x16 slot offers additional flexibility for adding high-bandwidth expansion cards.
The Commell LV-6717 is powered via a standard 24-pin ATX connector (compatible with 20-pin) plus a 4-pin 12V input or 12V DC-in, allowing deployment across a wide range of industrial environments. With its compact footprint, rich feature set, and support for the latest Intel platform, the LV-6717 is an excellent choice for embedded system developers and OEMs building next-generation industrial solutions.
Key Features
- CPU: Intel Core Arrow Lake-S Ultra Processors FCLGA1851 package.
- Memory: 2 x DDR5 UDIMM sockets up to 128GB.
- LAN Interface: 2 x 2.5G LAN.
- Internal I/O: 2 x SATA3, 2 x RS232, 2 x USB2.0, 1 x GPIO, 1 x SMBus, 1 x Audio, 1 x LCD inverter, 1 x LVDS.
- Rear I/O: 6 x USB3.2 Gen2, 2 x LAN, 2 x RS232/422/485, 1 x Audio, 2 x HDMI, 2 x DisplayPort ++.
- Expansion: 1 x PCIE X 16 slot, 2 x M.2 (Key M), 1 x M.2 (Key E).
- GPIO interface: 8-bit Digital I/O interface.
- Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) and 4-pin 12V or DC input 12V.
Specification
| Form Factor | Mini-ITX Motherboard |
| Processor | Intel® Core™ Arrow Lake-S Ultra Processor |
| Package Type: FCLGA1851 | |
| Memory | 2 x DDR5 UDIMM sockets up to 128 GB, support ECC and Non-ECC, UDIMM / CUDIMM module up to 6400 MHz memory |
| Real Time Clock | Chipset integrated RTC with onboard lithium battery |
| Watchdog Timer | Generates a system reset with internal timer for 1min/s ~ 255min/s |
| Serial ATA Interface | 2 x Serial ATA3 interface up to 600MB/s |
| LVDS Interface | Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply |
| DisplayPort Interface | Onboard DisplayPort 1.4a |
| HDMI Interface | Onboard HDMI 2.1 |
| Audio Interface | Realtek ALC888S HD Audio |
| LAN Interface | 1 x Intel® I226-LM Gigabit LAN (Up to 2.5GbE) |
| 1 x Intel® I226-V Gigabit LAN (Up to 2.5GbE) | |
| GPIO Interface | Onboard programmable 8-bit digital I/O interface |
| Expansion | 1 x M.2 Key M 2280 support PCIe Gen4 for NVMe |
| 1 x M.2 Key M 2280 support PCIe Gen5 for NVMe | |
| 1 x M.2 Key E 2230 for Wi-Fi and Bluetooth | |
| 1 x PCIE X 16 slot support PCIe Gen5 | |
| Internal I/O Port | 2 x SATA3, 2 x RS232, 2 x USB2.0, 1 x GPIO, 1 x SMBus, 1 x Audio (MIC-in & Line-out), 1 x LCD inverter, 1 x LVDS. |
| Rear I/O Port | 6 x USB3.2 Gen2, 2 x LAN, 2 x RS232/422/485, 2 x HDMI, 2 x DisplayPort ++, 1 x Line-in, 1 x Line-out, 1 x MIC-in |
| Power Requirement | Standard 24-pin ATX power supply (20-pin is compatible) and 4-pin 12V or DC input 12V |
| Board Dimension | 170 mm x 170 mm (L x W) |
| Temperature | Operating within 0 ~ 60°C (32°F ~ 140°F) |
| Storage within -20 ~ 80°C (-4°F ~ 176°F) | |
| Relative Humidity | 10% ~ 90%, non-condensing |
Ordering Information
LV-6717 – With Intel Core Ultra Processor, W880 , support HDMI, LVDS, DP ++, 2.5G LAN
