Description
Kingdy’s 11th Gen products are designed to meet the demands of harsh environments and are built with high-quality materials to ensure durability and reliability. The company’s industrial computers feature fanless designs, wide temperature ranges, and shock and vibration resistance, making them suitable for use in industries such as transportation, automation and marine.
Kingdy 11th Gen Panel PC – Key Features
- Kingdy 11th Gen Aluminium Panel PCs
- Fanless and Rugged Aluminium Design
- 11th Gen Intel Core Celeron 6305E / i3-1115G4E / i5-1145G7E / i71185G7E and Intel Elkhart Lake ATOM X series processors.
- DDR4 So-DIMM up to 64GB
- 7″ – 24″ Standard and High Brightness Display
- Resolution 1024×768 to 1920×1080
- True Flat PCT or 5 Wires Resistive touch solution
- IP65 / IP66 Silver Aluminium front bezel
- Operating Temperature: Standard (0 ~ 45°C) and Wide Temp (-20 ~ 60°C)
Specification
| System |
| CPU |
| Intel 11th Gen iCore: i3-1115G4E / i5-1145G7E / i7-1185G7E CPU Intel 11th Gen Celeron: 6305E Intel Elkhart Lake ATOM X (contact us for more information) |
| Memory |
| 2 x 260-pin DDR4 3200MHz SODIMM up to 64 GB |
| H/W Monitor |
| H/W Monitor |
| Watch Dog Timer 256 Level |
| TPM |
| Controller |
| Infineon SLB9670VQ2.0 |
| I/O Ports |
| RS232/422/485 |
| 2 (See Datasheets) |
| HDMI |
| 1 (See Datasheets) |
| DP |
| 1 (See Datasheets) |
| USB 3.2 |
| 4 (See Datasheets) |
| GLAN |
| 2 (See Datasheets) |
| GPIO |
| 16 bits ( 8 x GPI , 8 x GPO), 5V , 2 x D- SUB connectors (See Datasheets) |
| Storage |
| Storage |
| 1 x SATA 3.0 |
| Expansion |
| M.2 |
| 2 x Full-size |
| Power Requirement |
| Power Requirement |
| 3 Pin power terminal block for DC in 12 ~ 24V (See Datasheets) |
| Touch Screen |
| Touch Screen |
| True Flat PCT or 5 Wires Resistive touch solution (See Datasheets) |
| OS support |
| OS support |
| Win Pro 10 / Embedded Win 10 / Window 10 IoT / Fedora 25 Ubuntu 16.04 |
See Datasheets for full specifications and ordering information
 |
 |

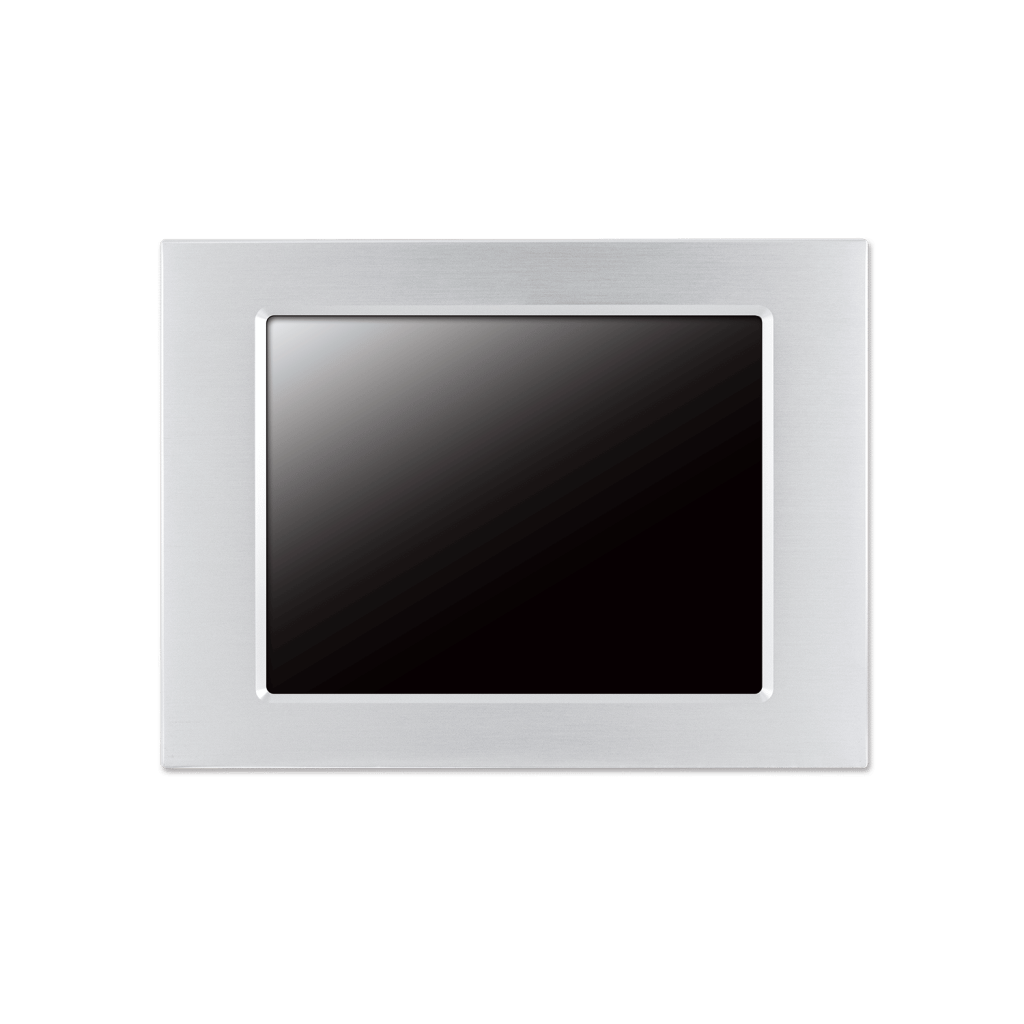

| SP Series | TP Series |
