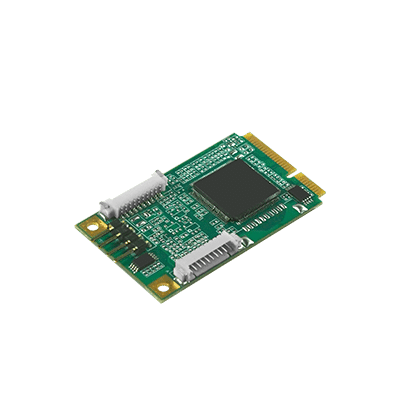

YUAN – SC330N8 MC – Mini PCIe – SD Capture Solution – 8 Channel COMPOSITE
Yuan – SC330N8 MC – Mini PCIe – SD Capture Solution – Software Compression
Description
YUAN High-Tech, established in 1990, are an established video capture card provider for industrial applications, digital home entertainment, broadcasting, and surveillance markets. With their headquarters in Taipei, Taiwan, YUAN have been providing high-quality video/audio products for over30 years. Their focus is on serving system integrators and ODM’s on a global basis.
Model | SC330N8 MC | |
---|---|---|
Max. FPS | 240/200fps@D1 | |
Recording Mode | Software Compression, Real-Time Mode | |
Dimension | 30×50.95 ( mm ) | |
Interface | Minicard ( PCIe×1 ) | |
ADC | 10-Bit | |
Video Input | 8×Pin | |
Display Video Format | YV12, NV12, YUY2, RGB24, RGB32 | |
Display Video Resolution | NTSC 720×480@30fps 704×480@30fps 640×480@30fps 720×240@30fps 704×240@30fps 640×240@30fps 360×240@30fps 352×240@30fps 320×240@30fps |
PAL 720×576@25fps 704×576@25fps 640×576@25fps 720×288@25fps 704×288@25fps 640×288@25fps 360×288@25fps 352×288@25fps 320×288@25fps |
Recording Video Format | H.264 ( Software Compression ) | |
Display Video Resolution | NTSC 720×480@30fps 704×480@30fps 640×480@30fps 720×240@30fps 704×240@30fps 640×240@30fps 360×240@30fps 352×240@30fps 320×240@30fps |
PAL 720×576@25fps 704×576@25fps 640×576@25fps 720×288@25fps 704×288@25fps 640×288@25fps 360×288@25fps 352×288@25fps 320×288@25fps |
Audio Input | 8×Pin | |
Audio Format | Mono / 8~16-Bit / 8000~48000Hz | |
I/O | 8 | |
WatchDog | V | |
Multiple Cards | ∞ | |
SDK | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
|
System Requirement | ||
OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
Design to Order: OEM/ODM Embedded Product Design ServicesFor customers designing a brand-new product from scratch or working with an existing prototype.
|
Build to Order: Embedded Computer Design and Customisation ServicesTake an existing system and we can:
Build to Order: Racks and Towers, Peli Case PCs and Mini-ITX PCs Embedded Software Services : Configuration, Integration and DeploymentPorting, Integration & Deployment
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
Testing |
Materials Management |
Logistics and Tracking |
External Manufacturing |
• Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
Click here to find out more.
Manufacturer : Yuan
Card Type
- Card Interface Type : Mini PCIe
- Card Function : Video Capture
- Card Capture Resolution : SD
- Card Capture FPS :
CPU
- Powered By :
- CPU Model :
- CPU Speed :
- CPU Cores :
Memory
- Memory Installed :
- Memory Slots :
- Memory Type :
I/O and Expansion
- Expansion Slots :
- LAN Ports :
- Serial Ports :
- USB 2 Ports :
- USB 3 Ports :
- USB 3.X / USB C / USB 4.0 Ports :
- Video Output :
- Multi Display :
Operating System
- OS :
Certifications
- Certifications :
Categories : Mini-PCIe Video Capture Cards
