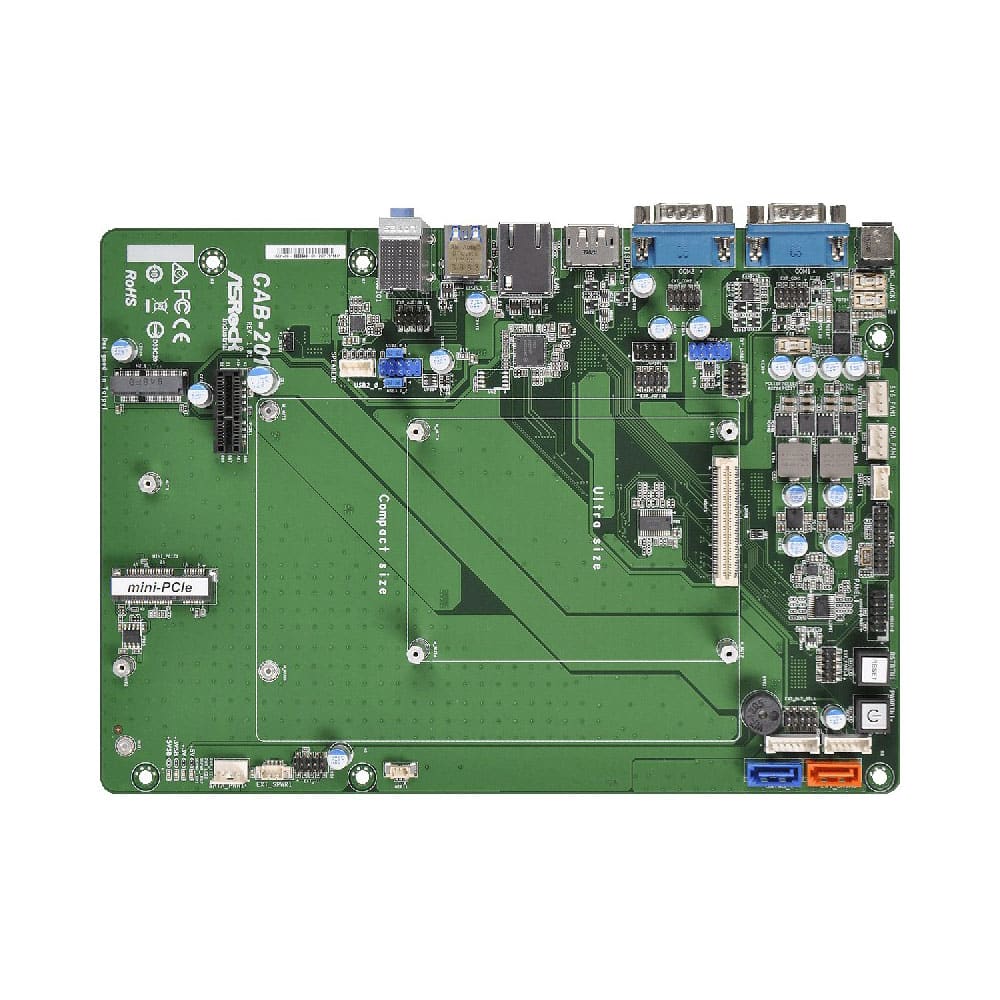

ASRock Industrial CAB-201 Pico-ITX Module Micro-ATX Carrier Board

Compare

  • Product Name: Asrock CAB-201
  • Motherboard Form Factor: Pico-ITX Module Micro-ATX Carrier Board
  • CPU: Not specified
  • RAM: Not specified
  • Expansion: 1 x PCIe, 1 x mini-PCIe, 1 x M.2 (Key E), 1 x MIOe
  • Other features: Supports PICO-ITX module, 1 x DisplayPort, 1 x USB 3.0, 1 x USB 2.0, 2 x SATA3, DC 12V DC-in

Description

Features

  • Supports PICO-ITX module
  • 1 x DisplayPort
  • 1 x USB 3.0, 1 x USB 2.0, 2 x SATA3
  • 1 x PCIe
  • 1 x mini-PCIe
  • 1 x M.2(Key E)
  • 1 x MIOe
  • DC 12V DC-in

Specifications

Form Factor
Dimensions Micro ATX ( 9.6-in x 6.7-in) / ( 244 mm x 170 mm)
Processor System
CPU By CPU Board
Chipset By CPU Board
Expansion Slots
PCIe 1 x PCIe x1
MIOe HDMI or DP , 3 x USB2.0 or 1 x USB3.0 + 1 x USB2.0 , 4 x PCIe x1 , LPC bus , SMBus
Mini-PCIe 1 x mini-PCIe (half/full/ size with SIM card socket)
mSATA N/A
M.2 1 x M.2 Slot (Key E), supports type 2230 for WiFi + BT Module
Memory
Technology By CPU Board
Max. By CPU Board
Socket N/A
Graphics
Controller By CPU Board
VGA N/A
DVI N/A
LVDS N/A
HDMI N/A
DisplayPort Supports max resolution up to 4096 x 2160@60Hz
MultiDisplay By CPU Board
Ethernet
Ethernet By CPU Board
Controller By CPU Board
Connector By CPU Board
Rear I/O
VGA – N/A
DVI – N/A
HDMI – N/A
DisplayPort – 1
Ethernet – N/A
USB – 1 x USB3.0 , 1 x USB2.0
Audio – N/A
Serial – N/A
PS2 – N/A
Internal Connectors
USB  x USB 2.0
LVDS / inverter N/A
eDP N/A
VGA N/A
Serial N/A
SATA N/A
Parallel N/A
GPIO N/A
SATA PWR Output N/A
Speaker Header 1
TPM N/A
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR 12V DC-in
Power On AT/ATX Supported

AT : Directly PWR on as power input ready

ATX : Press button to PWR on after power input ready

Environment
Temperature – 0°C – 60°C
Storage Temp -40°C – 85°C



The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Datasheet

Download
